MS001 100X LED Cell Phone Microscope Lens - Apexel

Apexel MS001 Universal Smartphone Microscope Lens – Your Gateway to Natural Observation.

A cutting-edge, portable smartphone microscope lens meticulously designed to cater to your observation needs. Seamlessly compatible with a wide range of smartphone models, this innovative lens offers crystal-clear imaging, ensuring your explorations are nothing short of breathtaking. Compact, versatile, and exquisitely crafted, the MS009 is your ultimate tool for documenting and capturing the beauty of nature.

How to achieve the best results?

It's a very close-up mini microscope or macro lens, and the optimum working distance is 3.6mm-5mm. Not a telephoto for a distant object. The microlens magnification is 10X; with your phone's camera 5X magnify, you can get 50X magnified view.

Features

100X Magnification: Explore the intricate details of the natural world with 100 times magnification, revealing the hidden beauty that the naked eye can't perceive.

Crystal Clear Imaging: Experience superior clarity and image quality thanks to the full-surface multi-layer broadband coating, ensuring your observations are vividly detailed.

Enhanced Compatibility: The F1.8 aperture design ensures compatibility with a wide range of smartphones, making it easy to attach and use with your device.

Compact and Portable: With its compact size, you can take this microscope lens anywhere you go, allowing you to document images and videos of your observations on the fly.

LED Illumination: The built-in LED fill light provides over 2 hours of continuous illumination, making it perfect for low-light conditions and enhancing your observations. The Hall effect (magnetic control) switch ensures convenient operation.

Versatile Applications: Whether you're a nature enthusiast, a budding scientist, or simply curious about the world around you, this microscope lens is suitable for a wide range of applications, from studying plants and insects to exploring everyday objects in intricate detail.

Lens is the key to a microscope

We used four sets of quality glass lenses instead of an aspherical resinous lens.

Why should you choose a glass lens?

The glass lens has higher transmissivity than a resinous lens.
The glass lens offers superior picture quality in terms of resolution, brightness, and color fidelity than a resinous lens
The glass lens has more stable performance than a resinous lens, such as hardness, heat-resisting，cold-heat-resisting, anti-scratch, deformation resistance.

High-cost multi-layer coating for each pcs of the lens.

Multi-layer coating’s advantages:

Increase lens light transmissivity.
Reduce lens light reflectivity.
Increase lens anti-scratch ability.
Enhance lens color rendition ability.

WIDE COMPATIBILITY

You don't need install any App on it.

And it can work on Android and iOS devices like iPhone,Huawei,Samsung/Xiaomi and other smartphone models.


	Continuous use for 2 hours When fully charged (can be charged via USB), the microscope can use for 2 hours continuously. It is very useful for outdoor activities, hiking, camp activities, and free study of students.	Light and Flexible It is very light and weighs only 10.5g. The clip makes it easier to place and remove. You can adjust the clip at will according to the position of the phone lens.

Real shot effect

Smartphone's digital zoom : fuzzy, distorted, limited ability to capture more details.

DSLR : high imaging quality but expensive and bulky.

The mini microscope lens attachment is a go and get product if you are a plant enthusiast.


Step 1: Insall clip to phone, and keep the microscope lens aligned with your phone main camera	Step 2: Sliding the lens cover to bottom, If dont need led light.	Step 3: If need led light, Sliding the lens cover to bottom to turn on LED.	Step 4: Fine tuning clip, and ready to shoot

Product Specifications

Product brand	APEXEL
Product name	100x Phone Microscope
Weight	0.1 kg
Dimensions	5.5 × 1.2 × 2.3 cm
Adaptation	All mainstream phones on the market
Magnification	100X
Product material	Pc
Equivalent focal length	45mm
Exit pupil diameter	2.3mm
Focus distance	Standard definition 10~11.4mm (The best shooting distance is 10.95 on the first glass of the lens) Define 3.6~5mm from the shape of the product, (the best shooting distance is 4.57 from the outer surface of the product)
Number of lenses	4 elements in 4 groups
Charging port	Micro usb
Charging time	About 90 minutes
Battery capacity	30mah
Brightness	6 LEDs to guide light, one level of brightness
Light on time	About 100 minutes, flashes when the battery runs out
Color temperature	6000~6500k
Switch control	Hall induction (magnetic control)
Charging instructions	Red light when charging, green light when fully charged

Apexel MS001 Universal Smartphone Microscope Lens – Your Gateway to Natural Observation.

How to achieve the best results?

Features

Lens is the key to a microscope

WIDE COMPATIBILITY

Continuous use for 2 hours

Light and Flexible

Real shot effect

Step 1:

Step 2:

Step 3:

Step 4:

Product Specifications

Special Deal

Price

Collections

APEXEL M15 Macro Lens with Fill Light

APEXEL MS001 100X LED Cell Phone Microscope Lens

APEXEL FL23 3-in-1 Phone Lens Clip with Patented Fill Light

APEXEL PhoneMicro 5 Series 100X/150X/200X/300X Microscope Lens

APEXEL 3 in 1 Mobile Phone Lens Clip and 100mm Macro Lens Kit with Fill Light

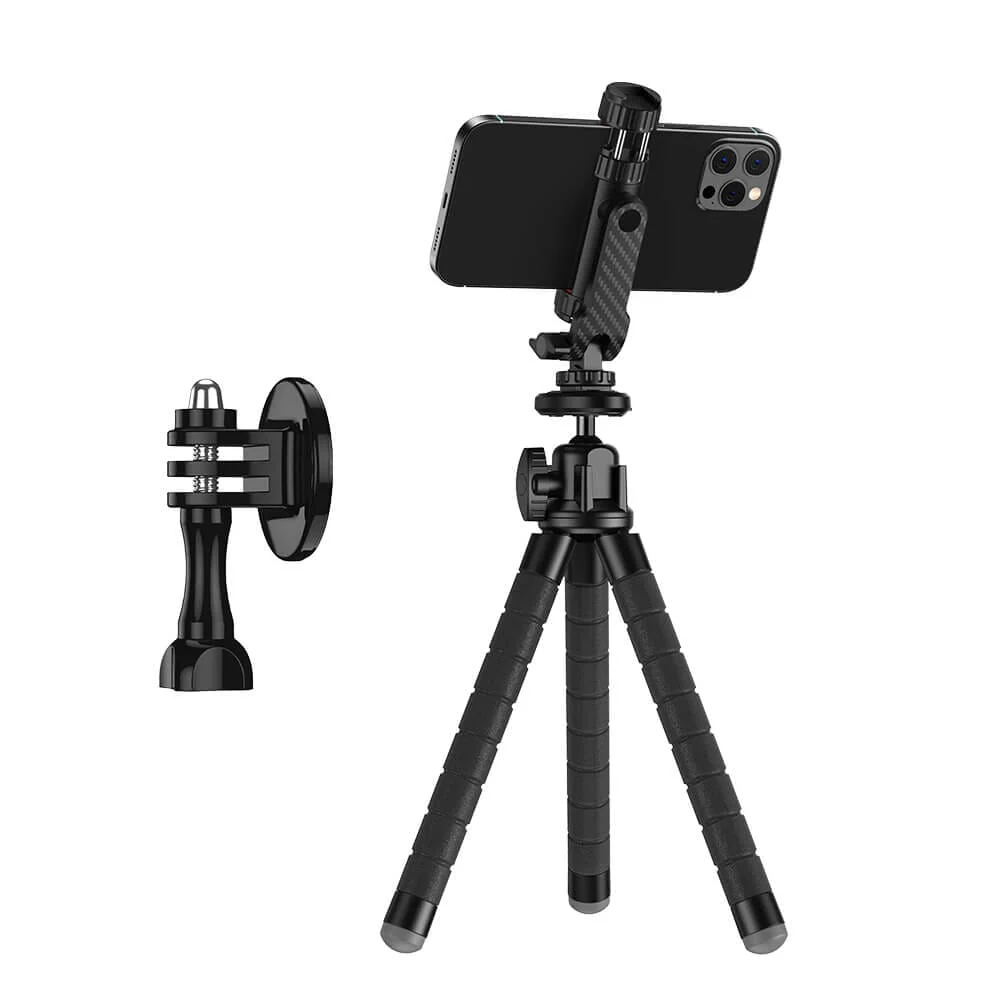

APEXEL Flexible Octopus Tripod with Dual Cold Shoe Mounts
